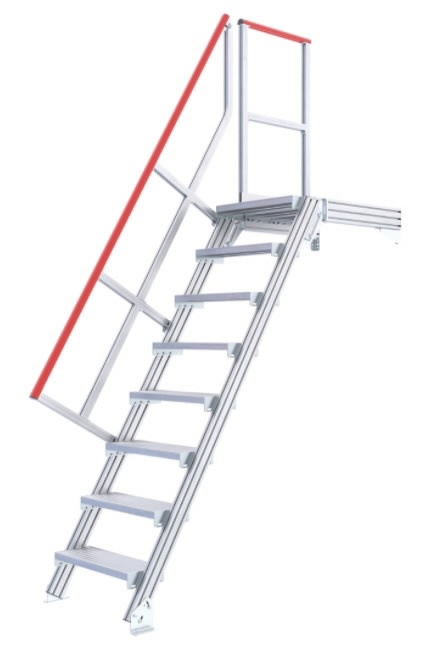

Fixed stair with platform 60°, 7 steps 1,75m 2220

Aluminium profi le steps 200 mm deep,alternatively aluminium or steel grating steps240 mm deep at additional cost. Step width optionally 600, 800 or 1,000 mm.For access ways to machines or machinerysystems, a step width of 600 mm is onlypermitted in exceptional cases. For lateral wall installation, triangularbrackets are additionally required. Platform length 500 mm. Extension in stepsof 500 mm for aluminium profi le steps andgrating platforms. If aluminium chequer plateis used, intermediate sizes are possible.Platform lengths are limited to 2,500 mm incantilever version. With one handrail (mounted on the left), canalso be mounted on the right on request.Second handrail available at extra cost. Foraccess paths to machines or machinerysystems, handrails on both sides aremandatory if the distance to the object isgreater than 120 mm. Guardrail 1,100 mm high on the platform, withknee and foot rail. Not in-stock, production on order. Shipped insubassemblies pre-assembled in the factory. Note: For use by one person only. Platform height 1,75m Step width 600mm
