Product info
Instruments for measuring vehicle exhaust particulate number emissions.

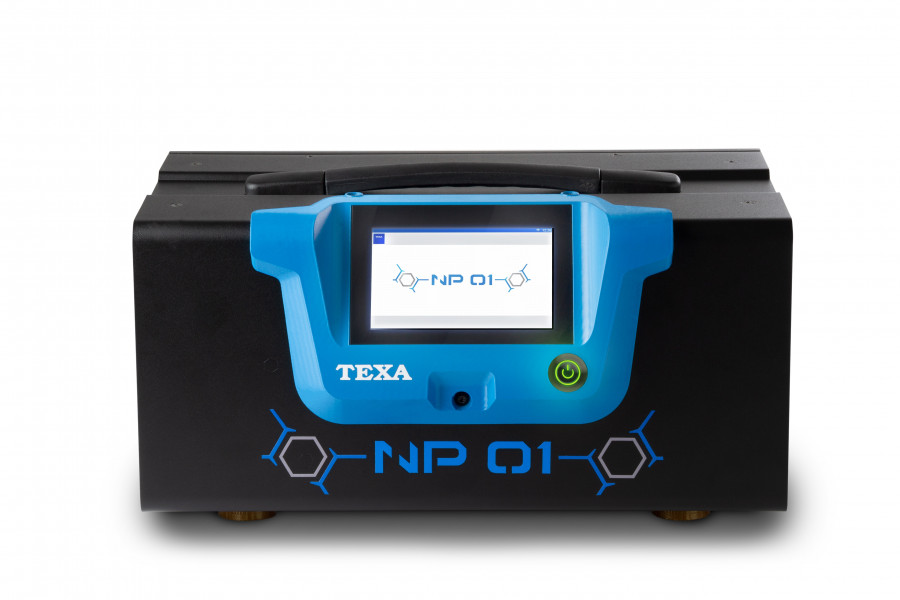

NP 01 is a particle counter working in the dimensional range between 23 and 200 nm using a DC sensor. NP 01 integrates a touch screen display for a fast and easy management by end user and a WiFi interface for communicating to the visualization
software. NP 01 was developed respecting technical specifications requested by Dutch N-PTI regulation and German PTB-A 12.16.
Technology DC
Response time 95% < 15 sec
Measuring range 5.000 – 5.000.000 #/cm3
Error (absolute) 25.000 #/cm3
Error (relative) 25%
Particle size 23 -200 nm
Resolution 1.000 #/cm3
Interfaces WiFi, US
- Weight 10 kg
- Weight with package 10 kg
- Dimensions (with package) 20 x 20 x 20 cm
- Sales unit pcs
- GTIN / EAN G15750
- Manufacturer part number G15750
