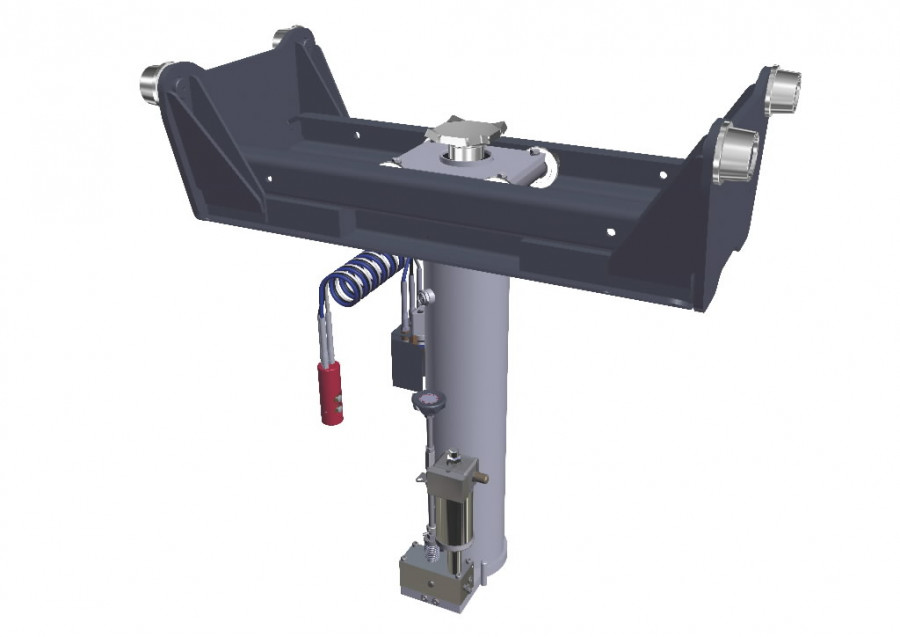

Pit jack MPJ 16.5/750 1S HA STOCK

The suspended pit jack lifts up to 16.5 t. The overhead rail pit jack, with deep-drawn carriage and long 750 mm stroke, is suitable for work with or without axle crossbeams and support systems. Compressed-air rapid control provides fast up and down movement when there is no load. The equipment also includes an air motor for lifting the piston rod under load. Technical data: Load capacity (CE)16,500 kg Stroke distance750 mm Lifting levels1 Min. pick-up height from roller slide rail- 69 mm Pit jack depth for roller slide rail1070 mm Max. lifting height above roller slide rail681 mm Slide rail width inner dimensions700 ? 1200 mm Carriage adjustable range140 mm Roller rest width40 mm Roller rest incline8 % / 4.6° Max. parallelism deviation slide rails10 mm Roller diameter (at the flange)80 (95) mm Support diameter inside/outside45/70 mm Piston rod diameter70 mm Oil quantity/quality9.5 l / HLP-D 10 Drive350 l/min. 11 bar Operating pressure254 bar Weight239 kg All pictures and videos are illustrative.
