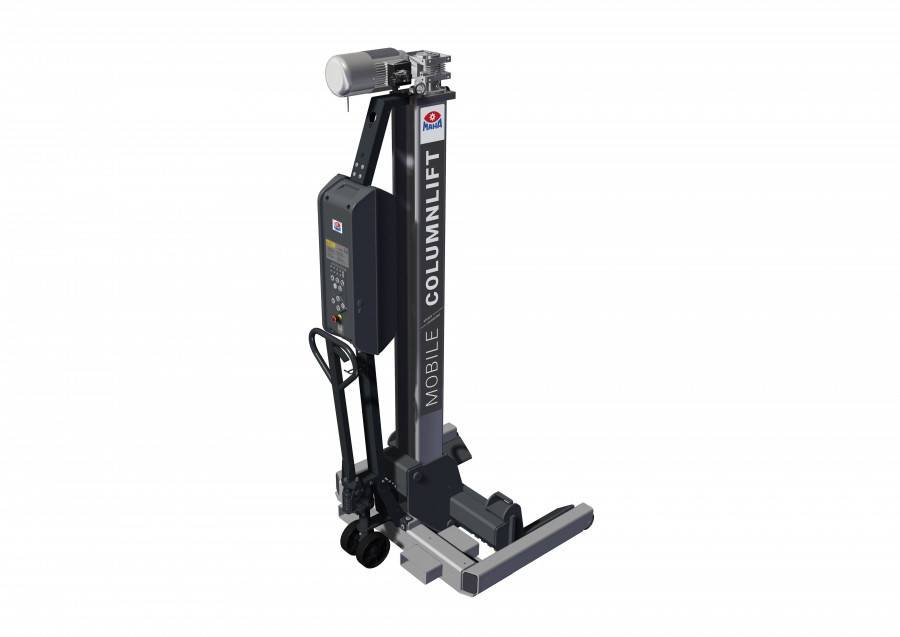

Mobile column lift 7,5t C RGA

The new mobile column lift model C_RGA with proven electromechanical drive is completely oil-free and thus requires extremely little maintenance. Mobile, wireless column lift with energy supply via powerful rechargeable lithium-ion batteries. Load capacity CE per column 7500 kg Drive power per column 1.5 kW Weight per column 525 kg Width of column profile 180 mm Width of chassis 1150 mm Height of chassis 131 mm Full travel 1700 mm Lifting height (upper edge of lifting carriage) 1800 mm Overall height of column 2474 mm Lifting/Lowering time (load-dependent) 127 s Lifting/Lowering time High speed (load-dependent) 81 s Inner distance of support forks min. - max. 290 - 680 mm Tyre diameter min. - max. 550 - 1500 mm Length of support forks 380 mm Voltage for charger 1 x 100-230 V AC 50/60 Hz Fuse B 16A RCD (30 mA) Power supply LiIon 50.4 VDC Lifting cycles under partial load (3500 kg, w/o high speed option) 35 Lifting cycles under full load (w/o high speed option) 25 Protection rating IP 54
