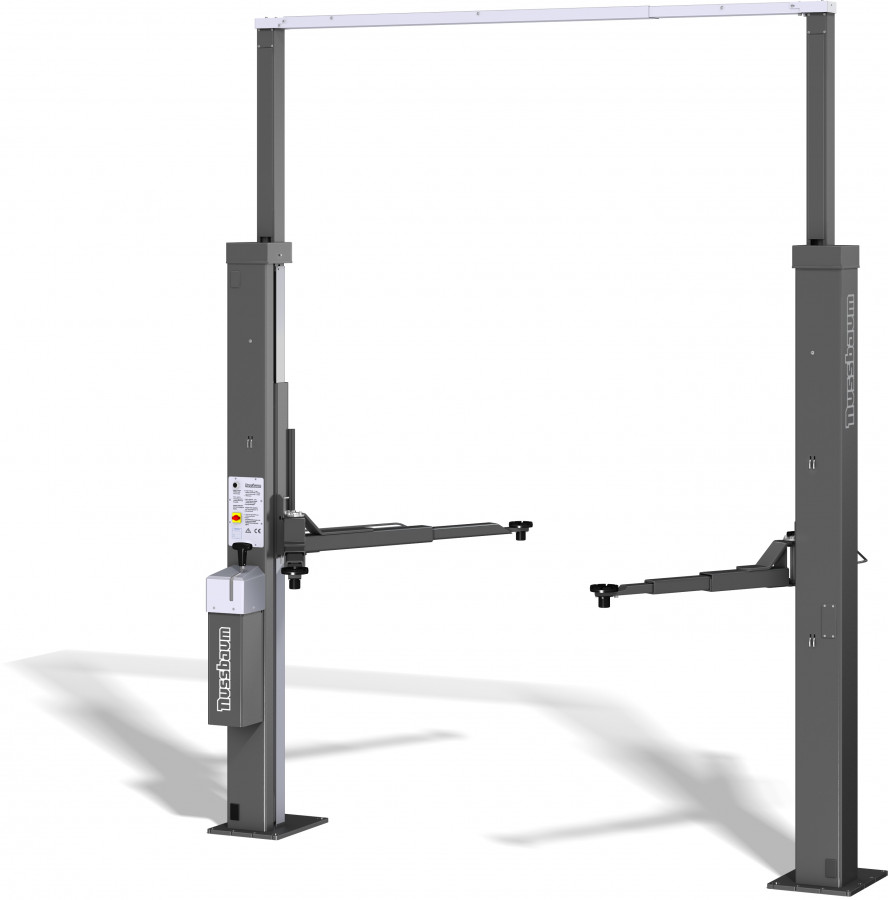

2-post lift HF 3S 3500 DT 3.5T

Technical specifications: Capacity 3500kg Lifting height 2050mm Lifting time 23s Lowering time 14s Lowest lifting point 95-140mm Long arm extraction 940-1495mm Short arm extraction 570-1160mm Drive through width 2546-2746mm Distance between columns 2546-2746mm Total width 3130-3330mm Total height of the column 4040mm Required ceiling height 4200mm Motor capacity 3kW Power 400V/50Hz Colour: Grey RAL7016 Fully hydraulic two-post lift with patented HyperFlow® technology and mechanical safety latch for triple security. Quiet running motor, faster lifting and lowering cycles. Controls via commander lever. Simple and safe synchronous lifting arms compensation via patented HyperFlow® technology replaces mechanical lifting arm compensation using cables. No base plate connection. Low-maintenance and almost wear-free hydraulic cylinders. Self-purging hydraulic system. Simple and fast assembly. Variable installation width. The lifted load can be controlled by lowering into and lifting from the park position using the safety latches. All pictures and videos are illustrative.
