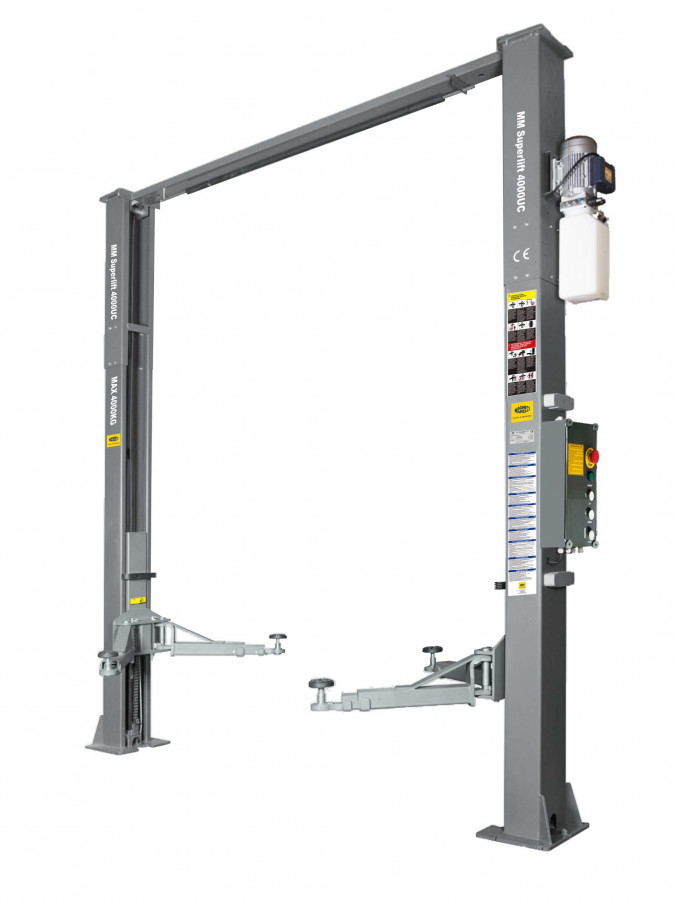

2-post lift MM Superlift 4000UC

Capacity 4T Lifting height 1910mm Min height 110mm Max car width 2616mm Power supply 400V 3PH 50/60Hz 2.2KW Shipping lnformation Loading QTY : 30 units/20’ CTNR 2940.450’750mm (641 kg/units) Machine weight 670kg Lifting capacity 4000kg Machine lift height 1910mm Platform initial height 110mm Machine height 3750mm Machine width 3420mm Machine lifting time ≤45s Machine descent time about 45s Standard power supply 3/N/PE~400V, 50Hz,10A Whole machine power 2.2kw Hydraulic oil 8L corresponds to wearable hydraulic oil Working temperature 5-40℃ Working humidity 30-95% Noisy < 70db Storage temperature -25℃~55℃ Foundation depth w/o floor covering 300 mm Concrete strength B25 Fuse protection 3C16 A Size Of the concrete block 1,5m x 4 m x 30cm In the standard equipment there are 2 sets of adapters (extensions) for the lifting pads (70 and 200 mm), arm protective covers, and protection of the vehicle door against damage / scratches.
