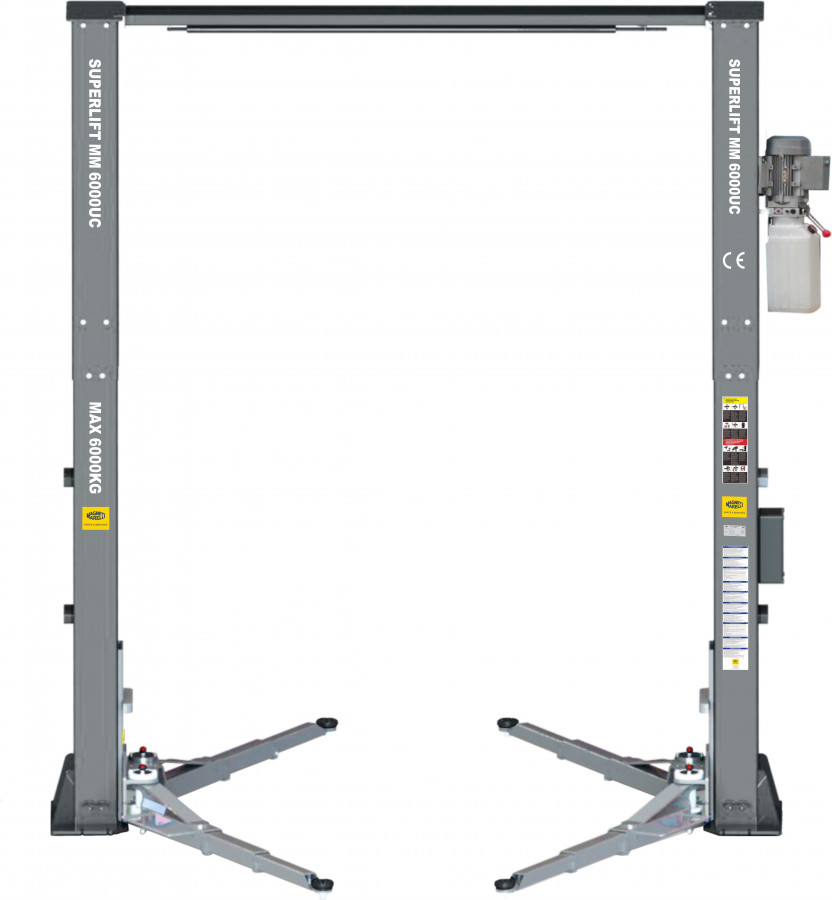

2-post lift MM Superlift 6000UC

Weight 1400 kg Lifting capacity 6000 kg Lift height 1910 mm Platform initial height 110 mm Height 5000 mm Width 3800 mm Lifting time ≤ 55 s Descent time ~ 55 s Power supply 3/N/PE-380V, 50Hz,16A Power 3 kW Hydraulic oil 12 L Working temperature 5° - 40° C Working humidity 30 - 95% Noise < 70db Storage temperature -25° - 55° Foundation depth w/o floor covering 300 mm Concrete strength B25 Fuse protection 3C16 A Size of the concrete block 1,5m x 4m x 0,3m The lift should be fixed on a smooth and solid concrete ground with its strength more than 210 kg/cm², tolerance of fatness less than 5mm and minimum thickness of 300mm. In addition, newly built concrete ground must undergo more than 28 days’ cure and reinforcement.
