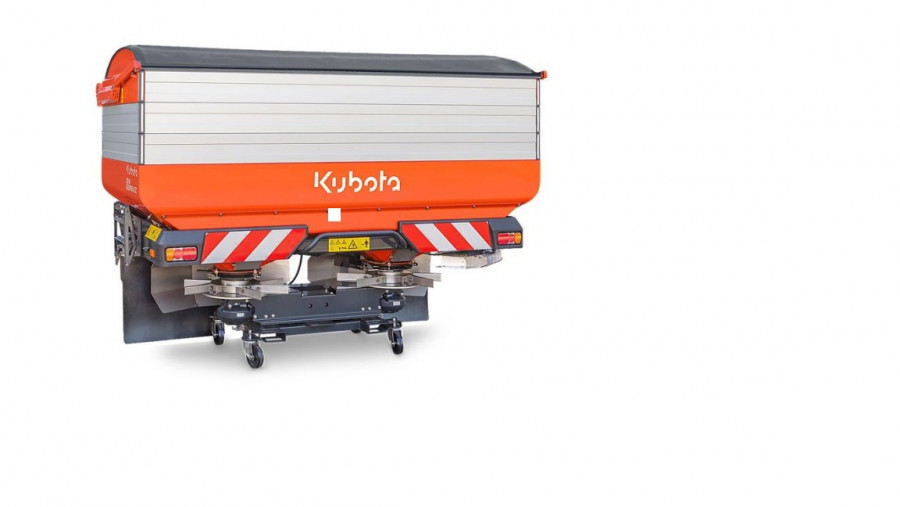

Fertilizer spreader DSX-W GEOSPREAD iDC 1875

Fertilizer spreader for precision farming with weighing system and hydraulic driveline Optimal spreading of fertiliser means using exact amounts of nutrition and avoiding overlap. Different fertilisers have a mix of different granular sizes, which is influencing the spreading pattern and the maximum possible spreading width. The flow rate will depend very much on the fertiliser properties (granules size, shape and weight) and will change with increasing or decreasing the humidity. The ideal fertilizer has 80% of the granules in the size range 2- 4,75 mm - then wider working width, than bigger granular size should dominate. But not over 4,75 mm, as too big granules may damage the crop. A good blend needs granules with similar specific weights and similar sizes. Kubota spreaders discs have 8 large spreading vanes, which allow most accurate spreading pattern and reduce wearing of vanes. RotaFlow system:central release point, smooth acceleration and centrifugal force accelerates fertilizer up to disc speed before it reaches the vane: no fragmentation, no dust. Flat discs, horisontal spreading pattern - minimal wind influence, maximum tolerance. Guaranteed accuracy on slopes. Integrated hydraulic driveline Intelligent independent Disc Control Standard features • Integrated weighing system with 4 load cells and reference sensor • Stainless steel front plates • Overload clutch • Fine application kit • Stainless steel hose connections • 2 High capacity & robust sieves • Tool to open the sieves • Inclinometer • Grading box to test the fertiliser quality • Open/close indicator • Top and bottom hopper windows, in total 4 pcs • Low speed agitator (15%) • LED lighting set • ISOBUS • Hydraulic driveline, independent disc control Depending on required number of spreading sections possible to buy different terminal licenses: Geocontrol Basic, Advanced or Professional (not included in price) As optional equipment possible TIM license (Tractor Implement Management) Technical data: Hopper capacity: 1875 l Hopper extension 675 l, in total 2550 l Filling height: 119 cm Total width: 290 cm Filling width: 284 cm Empty weight: 700 kg Spreading width: 12-54m, over 45m only with optional vane set Output: 10-320kg/min NB! Required for tractor: LS (load sensing) hydraulics! Optional equipment (included in price): * Righthand flow limiter TrimFlow/ExactLine ECO RH * Hopper extension 675l * Hopper cover, gray * Hopper emptying kit * Mudguards 1500/1875l * Foldable side step 1500/1875l * Tellus 1200 terminal * Kit Global 3 DGPS receiving antenna * SPREADER control license Manufactured in Netherland Kverneland Nieuw-Vennep factory Warranty 2 years Pictures are illustrative and for non-contractual use
